Fire Sense SPA - Fire Systems "Fire Bombs"

$200.00

FireSense® Suppression Systems

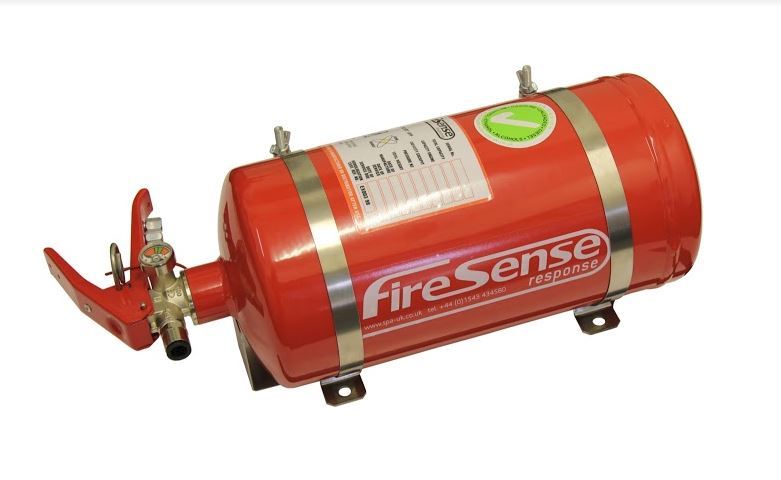

SPA MFM400S - 4 litre Steel Mechanical FIA approved/homologated system.

New and improved for 2018 onwards, improved flow rate and nozzle atomisation

This FIA approved system comes as a complete kit ready to install, you can have the peace of mind that the system you purchase is tested by the British standard institute on behalf of the FIA.

FIA Homologation No. - EX.045.17

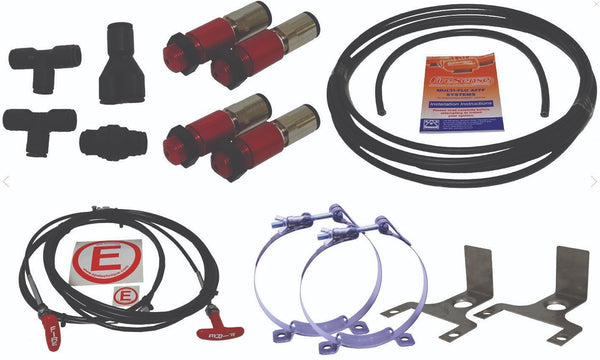

KIT INCLUDES;

4 x AFFF Nozzles - 2 for engine, 2 for cockpit

4.5 meters 8mm tubing

0.5 meter 10mm tubing

Bulkhead connectors and T-Pieces

Mounting brackets & Anti-torpedo tabs

Mechanical Pull cables – 6ft interior & 12ft exterior

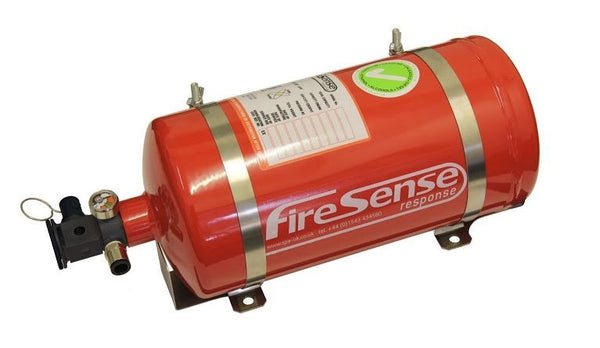

SPA MFE400A - 4 litre alloy Electrical/Automatic FIA approved/homologated system.

New and improved for 2018 onwards, improved flow rate, nozzle atomisation and fitted with an additional safety feature, automatic activation in the event temperatures rise too high within the cockpit area goes off when the thermal bulb in the firing head sees 80◦C.

This FIA approved system comes as a complete kit ready to install, you can have the peace of mind that the system you purchase is tested by the British standard institute on behalf of the FIA.

FIA Homologation No. - EX.045.17

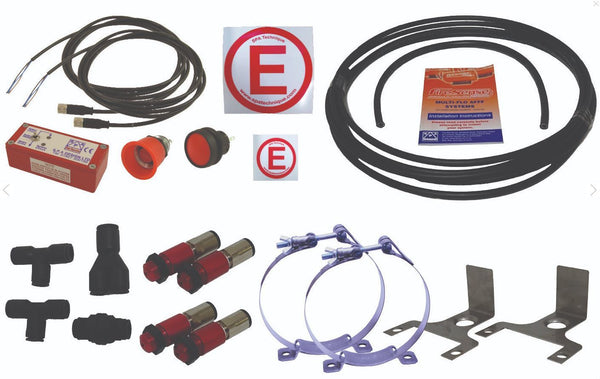

KIT INCLUDES;

Power Pack control box

2 x Hirschman Leads

2 x Activation Button - Internal with Shroud & External waterproof

4 x AFFF Nozzles - 2 for engine, 2 for cockpit

4.5 meters 8mm tubing

0.5 meter 10mm tubing

Bulkhead connectors and T-Pieces

Mounting brackets & Anti-torpedo tabs

2 x E stickers – Small for interior & Large for exterior



Extreme® Suppression Systems

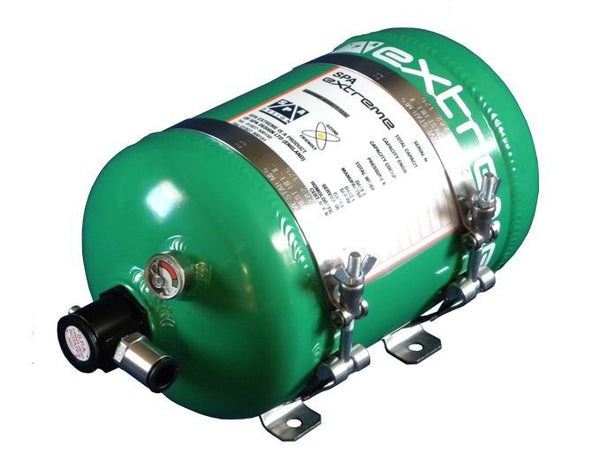

SPA EX 3.0 - SPA Extreme Fire System, 3.0kg Electrical

The SPA extreme system using 3M'S Novec 1230 Fire Protection Fluid. Carrying the latest FIA homologation EX.029.09. tested stringently to BSI standards, this is the latest offering in fire protection. Novec is Environmentally friendly, non-toxic, non-conductive, non-corrosive, alcohol-resistant (effective on methanol fires), and ozone-friendly. It is stored as a liquid under pressure that releases as a gas and leaves no residue, which means zero clean-up afterwards, and has no effect on delicate electronics.

Specifically designed for use in closed cockpit cars, rally, saloon and sports cars.

Utilizing our multi-directional nozzles, it gives impressive results in fire knockdown and fire out properties in record times.

Compact and easy to fit system, recommended for Bio fuel, petrol and diesel applications.

All Cars competing in International Rally events from 2013 require a minimum 3.0kg system.

FIA approved homologation number EX.029.09

KIT INCLUDES;

Power Pack control box

2 x Hirschman Leads

2 x Activation Button - Internal with Shroud & External waterproof

4 x Multi-Directional Nozzles - 2 for engine, 2 for cockpit

4.5 meters 6mm tubing

2.5 meters 8mm tubing

1.0 meters 10mm tubing

0.5 meter 12mm tubing

Bulkhead connectors and T-Pieces

Mounting brackets & Anti-torpedo tabs

2 x E stickers – Small for interior & Large for exterior

The SPA Extreme line of products uses 3M Novec 1230 Fire Protection Fluid.



Hand Helds - All hand-held extinguishers come complete with strap and mounting bracket.

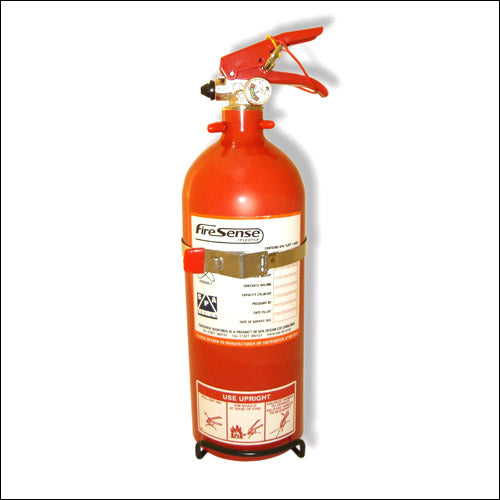

SPA HH240 - Hand Held Fire Extinguisher - 2.40Ltr

2.40 Litre hand held extinguisher that utilizes an alcohol resistant, freeze-protected AFFF (Aqueous Film Forming Foam) agent.



More Info;

SPA Technique produce a wide range of FIA and SFI approved fire extinguishers for many different applications, from grass roots motorsport all the way to highest levels of motor racing.

Our systems have been designed and tested to the highest standards available to withstand the harsh environment of motor racing, we offer a full range of FIA and SFI approved systems.

These systems range from standalone through to a whole host of fully automatically activated fire extinguishers.

We pride ourselves on using the best technology available to enhance our products and provide the best solutions available to you utilising the latest in Halon replacement gases to systems that use pyrotechnic devices rather than nitrogen pressurised cylinders for easy air transportation or special projects.

Totally new for 2018 onwards SPA Technique have re-engineered the complete range of AFFF products to offer improved flow rates, improved nozzle atomisation and faster fire out times as well as to offer a higher margin of safety. These new systems utilise FireAde2000® AFFF-AR (Aqueous Film Forming Foam - ALCOHOL RESISTANT) the most organic, environmentally safe foam agent on the planet. It contains zero hazardous chemicals and encapsulates and blankets the fire to quickly remove the heat, knockdown the flame, and smother the fire. The agent is climate controlled to -40°C.

In addition to these improvements a new automatic feature has been added to a range of models, in the event driver or Marshal is unable to operate the system and cockpit temperatures become excessive the system will operate automatically, under normal user conditions either the electrical switch or mechanical valve will be the standard method of operation, this is purely a backup feature that offers further peace of mind should you be away from the vehicle or in the event you are unable to operate the system.

These have been specifically designed for use in competition vehicles offering the latest in on board fire protection.

Our FIA homologated systems are tested and observed by the BSI institute to FIA standards.

We offer systems for Circuit use, Saloon and Sportscars, Single Seaters, Rally Cars and much more.

When purchasing a SPA Technique fire suppression system, you can be confident that these have been rigorously tested in conjunction with the BSI and fully conform to the latest FIA regulations for competition vehicles.

Note: FIA rules require fire systems to be inspected and re-certified every 2 years by the manufacturer or their approved service agent.



CAMS Schedule H – Fire Extinguishers

Plumbed-in fire extinguisher systems that are currently fitted and are of the prior FIA standard may continue to be used until 31 December 2018. For the ARC Outright class, it will be mandatory to have fitted an extinguisher system compliant with the rally requirements of FIA Article 253 and either FIA Technical List No. 16 or FIA Technical List No. 52.

As with all race components fabrication and install needs to be done by a competent fabricator.
